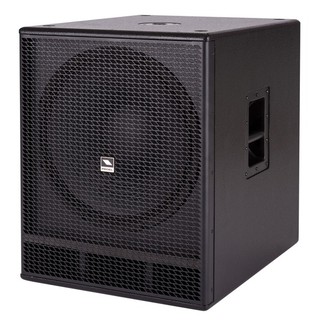

PROEL SW118P
PROEL SW118P
Vented passive sub-woofer
OVERVIEW
The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range. All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response. The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport.
- 18” woofer with 3” VC for a deep and extended response
- 500 W AES power handling
- SPL 1w/1m 98 dB
- Frequency response 36 Hz - 140 Hz (not filtered)
- Plywood cabinet with two metal handles and four 75mm wheels
Tech Descrption
Nominal Impedance 8 Ω
Power Handling (continuous) 500 W
Power Handling (program) 1000 W
Power Handling (peak) 2000 W
Frequency Response 36 Hz - 170 Hz (without filter)
Sensitivity 98 dB @ 1 W/1 m
Crossover Frequency suggested 120 Hz
Connectors 2 x NEUTRIK SPEAKON (IN/LINK)
Weight 47 kg (103.5 lb)
Cabinet 15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 x steel handles
1 x pole holder
4 x 75 mm wheels
Dimensions (W x H x D) 520 x 660 x 640 mm
