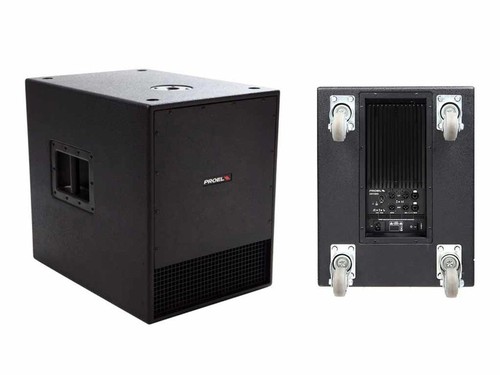

PROEL SW115P


PROEL SW115P
Compact passive sub-woofer in BPS configuration (series-loaded bandpass)

OVERVIEW
The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range.
All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response.
The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport (except SW110).
  • 15” woofer with 3” VC for a quick and dynamic response
  • 350 W AES power handling
  • Built-in passive crossover
  • SPEAKON connectors
  • SPL 1w/1m 97dB
  • Frequency response 40 Hz - 160 Hz
  • Plywood cabinet with two metal handles and four 75mm wheels

Tech Descrption
System type BPS enclosure subwoofer
Loudspeaker 15” woofer with 3" VC
Nominal Impedance 8 Ω
Power Handling (continuous) 350 W
Power Handling (program) 700 W
Power Handling (peak) 1400 W
Frequency Response 40 Hz - 160 Hz
Sensitivity 97 dB @ 1 W/1 m
Crossover Frequency 160 Hz, 12 dB/oct LP - 6 dB/oct HP
Connectors 2 x NEUTRIK SPEAKON  (IN/OUT)
Weight 29 kg (63.9 lb)
Cabinet 15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 x steel handles
1 x pole holder
4 x 75 mm wheels
Dimensions (W x H x D) 430 x 550 x 600 mm
